Ee 10 13 16 19 22 25 30 40 42 55 60 65 Transformer UL SGS RoHS Approved for LED Rectifier

Brand Name : IKP

Model Number : TF-EE251100-003S

Certification : CE/UL/REACH/ROHS

Place of Origin : CHINA

MOQ : 1000

Price : 0.75-0.85

Payment Terms : L/C, T/T

Supply Ability : 100,000/week

Delivery Time : 10-15 days

Packaging Details : Carton

Contact Now

Basic Info.

Model NO.
TF-EE251100-003S
Core
Core-type Transformer
Cooling Method
Dry-type Transformer
Winding Type
Multi-winding Transformer
Certification
ISO9001
Usage
Rectifier Transformer, Power Transformer
Frequency Characteristics
High Frequency
Shape of Core
Ee25
Brand
Ikp
Inductance Value
450uh
Transport Package
Carton
Specification
EE25
Trademark
IKP
Origin
China
HS Code
8504319000
Production Capacity
5000000

Product Description

Features:
1. Operating Frequency: 50~200KHz
2. Low-cost, all models mainly used in less demanding fields on the electromagnetic shielding power field.
3. Power frequency because of work, safety regulations and other requirements of the different temperature level will change.

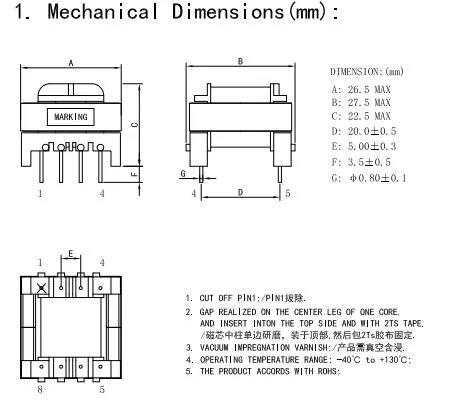

Specifications (Unit: mm):

Ee 10 13 16 19 22 25 30 40 42 55 60 65 Transformer UL SGS RoHS Approved for LED Rectifier


Ee 10 13 16 19 22 25 30 40 42 55 60 65 Transformer UL SGS RoHS Approved for LED Rectifier
Electrical performance:
1. Operating frequency: 20kHz-500KHz
2. Output power: 30 to 2000 W
3. Operating temperature:-40 ºCto +125 ºC
4. Storage temperature:-25 ºCto +85 ºC

Applications:
Household appliances, switching power supplies, communications equipments, medical equipments, production equipments, CCTV, computers, lighting equipments, Inverters for EV and PV, Audio amplifiers.
